1. Introduction

During the last ten years various functional magnetic resonance techniques have been developed which can be used clinical patient studies. Two main prerequisites have enabled to bring these techniques into clinical studies. First, the development of ultrafast imaging, especially echo planar imaging (EPI), nowadays available in 1.5 Tesla scanners. Originally, the technique was proposed as early as 1977 by Mansfield . EPI is a method by which spatial encoding for complete images is performed in a time shorter than, or comparable to, tissue T2 decay times. Because it is fundamentally just a spatial-encoding technique, EPI has the advantage of a rather similar image contrast than conventional MR imaging. The second prerequisite for the development of fMRI has been better understanding of the basic relaxation phenomena, especially susceptibility contrast . In this review we discuss the basics and clinical applications of three important functional magnetic resonance imaging techniques: diffusion and perfusion imaging, and brain activation studies.

2. Diffusion imaging

The basic principles of measuring diffusion by nuclear magnetic resonance were laid out already in the 1950’s by Stejskal and Tanner . In MRI, these principles are utilized in studying the molecular diffusion of water - in diffusion weighted imaging (DWI). A proton of a water molecule experiences slightly different field strength dependent on its spatial location because of local inhomogeneities in magnetic field. Because the field strength is directly proportional to the precession frequency, the moving spins acquire phase shift compared to static spins. Thus, if a normal spin echo imaging sequence is used the echo is formed normally for static spins but only a weak signal is detected for moving spins because they do not reach their initial phase at the time of echo. Although, a spin echo sequence is sensitive to diffusion the effect is usually too small to be detected. However, diffusion sensitivity can be increased by diffusion gradients put symmetrically around the 180 degree pulse (Figure 1). Diffusion sensitivity is expressed in the so called b-value

where G is the gradient amplitude, δ is the length of the gradient, Δ is the temporal difference of the two gradient pulses, and γ is the gyromagnetic ratio of a proton. The greater the b-value the more diffusion weighting there is. Since signal intensity is

where S₀ is the signal intensity without diffusion weighting and ADC the apparent diffusion coefficient, the signal decreases with increasing diffusion weighting. The ADC-value can be calculated by using two or more b-values, and thus diffusion can be measured quantitatively.



Diffusion of water in a tissue is restricted and anisotropic which makes it dependent on the direction of measurement. Usually diffusion is measured in three orthogonal directions and the mean value used to approximate diffusion in any direction. This mean is the trace of the diffusion tensor – a mathematical object that fully describes the dependence of diffusion on orientation. To determine the whole diffusion tensor a diffusion measurement is required in at least six different directions. With a known diffusion tensor, diffusion anisotropy can quantified and there are indications that this makes it possible to characterize e.g. the orientation of white matter tracts .

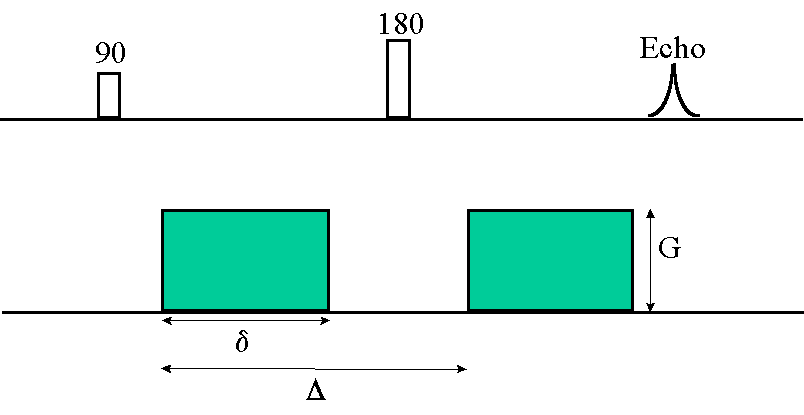

Figure 1. Diffusion weighted spin echo pulse sequence. Diffusion gradients (amplitude G, lenght δ, interval Δ ) increase the effect of magnetic field inhomogeneities and thus diffusion sensitivity.

2.1 Clinical applications

The ability of diffusion weighted imaging to detect changes in molecular diffusion of water can be utilized in imaging of cerebral ischemia. When cerebral blood flow diminishes below a critical level, failure of ionic pumps in the cell membrane to maintain ionic gradients leads to a net influx of water into the cell (cytotoxic edema). In 1990, Moseley et al. reported that DWI was more sensitive than T2-weighted imaging in detecting early cerebral ischemia after occlusion of the middle cerebral artery (MCA) in a cat stroke model . Reith et al. showed DWI findings in rat 5 minutes after occlusion of the MCA . Hoehn-Berlage et al. showed that by measuring apparent diffusion coefficient (ADC), one can detect a gradual increase of severity of ischemia from the periphery to the core of the lesion . Determination of ADC provides a method to evaluate the severity of the ischemic lesion. Although reperfusion has shown to cause recovery of ischemic lesions in animals , there has been few observations of recovery in humans . Warach et al. studied 32 stroke patients with DWI and showed it to be more sensitive than T2-weighted imaging also in humans . ADC can be helpful in determining the age of an ischemic lesion: ADC is decreased for 3-4 days from ictus after which a process called ´pseudonormalization´ occurs during days 5 to 10 . In chronic infarct, the ADC is higher than in normal brain. ADC maps help to avoid wrong positive ischemic findings a result of T2-shine-through, which is a problem in diffusion weighted raw images and trace images. Lutsep et al. studied the clinical utility of DWI in assessment of ischemic stroke and find it superior to T2-weighted imaging in acute situation Acute DWI lesion volumes have been shown to correlate with stroke scale scores and the final infarct volume . Despite the observations that in experimental models of non-human stroke, DWI lesions can recover with early reperfusion, lesions with decreased diffusion in human stroke are generally considered infarcted. DWI is clinically applicable method that provides useful information about hyperacute ischemic stroke. In our material in Kuopio University Hospital we have studied the natural course of ischemic lesion. We have observed that the DWI lesion enlarges between the day of the ictus and the day after that, when the first DWI was performed approximately 10 hours from the onset of symptoms . A statistically significant enlargement is seen even between the lesion volume on the second day and one week. This temporal course of the ischemic process supports the view that human ischemic stroke with partial occlusion and possible clot lysis differs from experimental stroke with animal models.

3. Perfusion imaging

By combining the simultaneous use of paramagnetic contrast material and ultrafast imaging it is possible to study the hemodynamics of normal and diseased human brain . Perfusion refers to blood circulation at the capillary level. In perfusion weighted imaging (PWI) the first-pass of an intravascular, paramagnetic, non-diffusible contrast agent through a region of interest, is studied. While in normal MR angiography the image voxel contains 100% of flowing elements in PWI the percentage is only 2-4% which makes the technique very delicate. The magnetic susceptibility difference between the capillaries filled with contrast agent and the surrounding tissue induces local magnetic field gradients which alter the measured signal . In human brain the first-pass of the contrast agent bolus is about 15 seconds which demands ultra-fast imaging in order to adequately sample the signal-time curve. MR signal is converted into concentration-values by assuming a linear dependence between contrast agent concentration and T2 relaxation rate. It is commonly believed that susceptibility contrast with a spin echo (SE) echo planar imaging (EPI) sequence is specific to small vessels, in contrast to gradient echo EPI . Relative cerebral blood volume (rCBV) can be determined by numerically integrating the concentration-time curve during first-pass of the bolus. rCBV is a measure of the amount of capillaries in a volume element. Relative cerebral blood flow (rCBF) can be determined if the arterial input function of the contrast agent is know . By deconvoluting the tissue concentration time curve by the AIF, CBF and the residue function R(t) (which describes the fraction of injected tracer present at the vasculature as a function of time) can be determined

.

According to the central volume theorem, the mean transit time (MTT) of the contrast agent through a voxel can be obtained as the relation of rCBV to rCBF. Recently, it has been proposed that in addition to relative values, also absolute values can be obtained with PWI .

3.1 Clinical applications: Ischemic stroke

Imaging of brain perfusion by using single photon emission computed tomography (SPECT) and positron emission tomography (PET) do not give morphological information about the brain, which seriously limits the clinical use of these methods in daily practice. Perfusion weighted MR imaging provides an opportunity to image perfusion in the same imaging session as DWI and conventional, more morphologically oriented MR imaging. Villringer et al. introduced the susceptibility effect of gadolinium in 1988 . It is the basis of contrast agent bolus tracking technique, which is at present clinically the most applicable PWI method. In the material of Warach et al. DWI and single slice PWI were more accurate than conventional MRI in predicting clinical improvement . Studies combining DWI and PWI have suggested that an acute infarct (detected by DWI) surrounded by hypoperfused zone (detected by PWI) could especially be at risk of enlargement . In a study of ten patients by Tong et al. lesion sizes in DWI and PWI correlated significantly with acute stroke scale score and final infarct size . They used time to peak maps and observed a hypoperfusion area larger than or equal to the DWI changes in all patients. Barber et al. observed larger perfusion defect in 11 out of 17 patients by using mean transit time maps and this perfusion-diffusion mismatch predicted infarct expansion . Acute PWI and DWI lesion volumes correlated with clinical outcome. Lesion volumes detected by PWI depend on the type of perfusion map used in volumetric analysis of hypoperfused tissue. In our series of 26 patients, the PWI lesion was larger than DWI lesion in 7 cases when measured from rCBV (relative cerebral blood volume) maps, in 15 cases when measured from rCBF (relative cerebral blood flow) maps and in 18 cases when measured from MTT (mean transit time) maps . In the study of Sorensen et al. rCBF maps combined with DWI predicted infarct growth more often (12 of 15 subjects) than rCBV maps combined with DWI (8 of 15 subjects), whereas rCBV and DWI lesion volumes showed better correlation with eventual infarct volume . Figure 2 shows a representative case with acute perfusion-diffusion mismatch and subsequent infarct enlargement. The rCBF map shows a hypoperfusion area that is of about the same size than the perfusion defect on SPECT. In our material, the perfusion-diffusion mismatch volume on the first day predicted worsening in early clinical outcome assessed with National Institute of Health Stroke Scale (NIHSS) . As a conclusion, combining perfusion and diffusion imaging seems to be a particularly effective method to assess the early hemodynamic changes in the acute ischemic stroke.

Ultra fast MR imaging sequences have made it possible to combine DWI and PWI with conventional imaging sequences and MR angiography. Clinically informative MR scanning can be performed in about 20 minutes, which is tolerated by majority of the patients with acute stroke. This robust method is and obviously will be harvested in clinical trials studying medical treatment of acute ischemic stroke. In the future, it is likely that combined DWI and PWI is part of our clinical routine when examining patients with acute ischemic stroke.

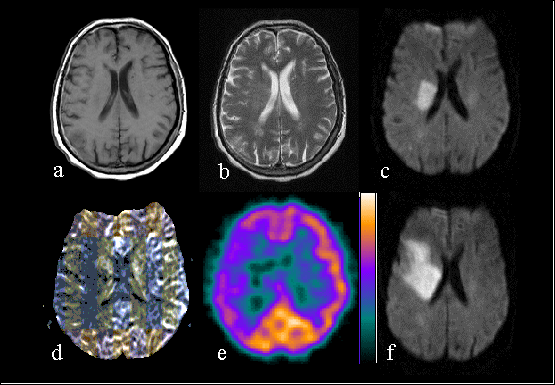

Figure 2. Seventy-three years old female with left hemiparesis. The first MRI (a-d) was performed 6.5 hours from the onset of symptoms. T1-weighted (a) and T2-weighted (b) image show very subtle findings. DWI (C) clearly shows ischemic lesion on the right hemisphere. Map of relative cerebral blood flow (d) shows larger perfusion defect on the right hemisphere, which is of about the same size than the perfusion defect on SPECT (e). DWI on the next day shows the enlargement of the infarct.

3.2 Clinical applications: Tumor imaging

Blood volume mapping has been shown to be potentially useful in the grading of primary gliomas. MR blood volume mapping was found to correlate strongly with PET-fluorodeoxyglucose (FDG) finding in most gliomas studied by Aronen et al . They found that high-grade gliomas were more heterogeneous in blood volume maps compared with low-grade lesions, making possible the grading of gliomas with CBV-mapping . Recently, it has been further confirmed that MR perfusion imaging offers powerful tools for addressing pathophysiological changes associated with blood-tumor-barrier.

4. Brain activation studies

The development of fast magnetic resonance imaging methods have enabled monitoring of dynamic processes in the human body. As long as one hundred years ago Roy and Sherrington introduced the idea of a close connection between cerebral activity and cerebral circulation and since the production of the first useful MR brain images 1973, a number of researchers have speculated on the possibility of imaging brain physiology as well as brain anatomy. Recent development of ultrafast magnetic resonance imaging (MRI) has enabled a fast and accurate, non-invasive way of human brain mapping - blood oxygenation level dependent contrast functional MRI (BOLD-fMRI) .

It has been known for a long time that the magnetic state of hemoglobin in red cells is strongly dependent on oxygen saturation and that deoxygenated blood is considerably more paramagnetic than oxygenated blood. It is also known that cortical neuronal activation not only increases regional oxygen consumption, but also regional blood flow and regional blood volume. The sum of these events is a local transient hyperoxemia associated with neuronal activity. This decrease of capillary and venous deoxyhemoglobin concentrations is reflected as an increase in the MRI relaxation parameter T2* and consequently an increase in the signal intensity of T2* (susceptibility)-weighted MR images. However, the signal changes related to cerebral activation are close to the noise level and therefore numerous signal processing techniques are used to overcome the low signal-to-noise ratio . It was more than fifty years later after the discovery of Pauling and Coryell until the first fMRI results were published . Since then the BOLD technique has been successfully applied to many examinations of human visual, motor, somatosensory, auditory and speech areas as well as in studies of higher cognitive functions.

4.1 Preoperative surgical planning

Until recent years non-invasive methods for determining individual functional anatomy prior to neurosurgical procedures have not been available. Advances in several medical imaging modalities have made this possible. Today it is possible to use positron emission tomography, functional MRI, magnetoencephalography (MEG), electroencephalography (EEG), and transcranial magnetic stimulation to map eloquent brain areas before surgical intervention. Knowledge of the location of motor areas or language areas, for example, will reduce the risk of iatrogenic damage causing severe disability to the patient. This has also large economic impact as postoperative rehabilitation is expensive.

With functional MRI it possible to locate primary sensory and motor areas (Figure 3) as well as areas related to higher cognitive functions such as language and memory and possibly also evaluate the hemispheric lateralization of these functions Intra-operative real-time monitoring with functional MRI has now been demonstrated . Recent results indicate that fMRI may also have a role in localization of epileptogenic foci . The studies evaluating functional MRI in clinical use have so far been conducted on relatively small patient groups (10-20 patients). The results have been encouraging in all studies performed.

Two main concerns in clinical use of fMRI are the artefacts and noise from motion and non-specificity to microvasculature. Since patient movements of the order of couple of millimeters during the imaging can severely deteriorate the quality of the data and induce severe artefacts, it is obvious that very good co-operation is required.

Other important movement related noise sources are the brain pulsation during the cardiac and respiratory cycles. In the future, prospective motion compensation techniques may improve the clinical applicability to less co-operative patient groups, such as children.

Currently the most widely used imaging sequences in fMRI are gradient-echo sequences, which provide the greatest sensitivity to BOLD signal. They are, however, not selective to signals from microvasculature only. According to optical imaging results the spread of signal to draining venules and thus introducing localization inaccuracy . All forms of functional MRI can benefit from use of higher field strengths as signal to noise ratio increases linearly with the field strength. This can be used for either shortening imaging times, higher resolution or increased sensitivity.

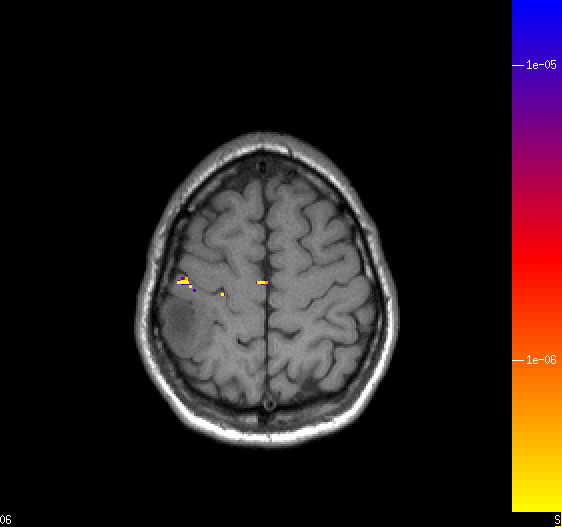

Figure 3. Sensorimotor cortex localized preoperatively in a tumor patient. The tumor is located parietally immeaditely posterior to the primary sensory cortex. Resection could be performed without loss of sensorimotor function.



4.2 Working memory and attention

Functional magnetic resonance imaging faces its greatest challenges and expectations in the field of cognitive neuroscience. It is hoped that this method would lead to a deeper understanding of the neurophysiological basis of behavior.

We have recently initiated a series of studies concerning neuronal mechanisms of visual and auditory working memory and attention. Working memory refers to temporary storage of information that is processed in a range of cognitive tasks . We applied the functional MR imaging technique to study the distribution of brain activation in humans engaged in a visuospatial working memory task performance. Neurologically healthy subjects performed a visuospatial n-back task with three load levels (0-, 1-, and 2-back tasks). In all subjects studied, significantly activated voxels were detected in areas which - according to their Talairach coordinates - were located in the middle frontal gyrus in the prefrontal cortex, in the superior frontal sulcus and gyrus and in the intraparietal sulcus (Figure 4) . Several other cortical areas, including areas in the cingulate cortex, the insula, and the superior and inferior parietal lobuli were also activated in relation to the task performance suggesting that a network of distributed cortical areas is engaged in visuospatial working memory task performance in humans.

While visual working memory mechanisms have been studied extensively during the past years, the functional organization of auditory working memory has received much less attention. There may be practical reasons for the lack of fMRI studies on auditory working memory. Functional MR imaging is accompanied with a relatively high level of background noise, which in auditory memory tasks may be a greater problem than when imaging during visual memory tasks. It is, however, possible to trigger the imaging so that the background noise related to the imaging does not coincide with the presentation of the auditory stimuli. On the other hand, the unavoidable background noise is similar in all imaging conditions, minimizing its effects on the task-related changes in regional cerebral blood flow detected by the fMRI. We have recently initiated an auditory fMRI project in which the functional organization of auditory working memory is studied. By using the same n-back task paradigm as in our visual working memory task and by triggering the imaging right after the end of the auditory stimulus, it was possible to overcome some of the problems related to the background noise .

The visuospatial, as well as the auditive working memory task performance revealed marked consistency between different subjects in the areas that were found to be statistically significantly activated during functional MR imaging. The n-back task paradigm is thus well suited for functional MR imaging and may therefore prove diagnostically useful in studying patients suffering from different kinds of memory disorders (e.g. dementias, Parkinson’s disease, stroke).

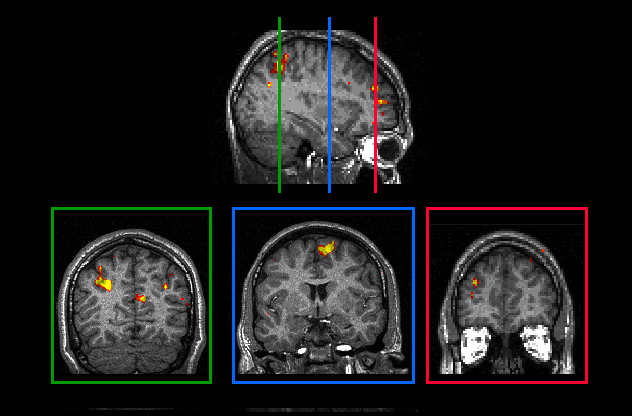

Figure 4. Visuospatial working memory as revealed by fMRI: A sagittal and three coronal slices illustrating brain activation in the Medial Frontal Gyrus, Superior Frontal Sulcus, Superior Frontal Gyrus and Intraparietal Sulcus.

5. Future Trends

Functional magnetic resonance imaging and magnetoencephalography provide a partial, but not overlapping view of the physiological events. This implies that the combined use of these techniques, multimodal imaging, could lead into a better understanding of human physiology . Most immediate applications of multimodal imaging are in neurosurgery where mapping of brain functions can be used in the planning of operations and risk assessment as well as intra-operatively for navigation in order to avoid unnecessary iatrogenic damage to the patient. Other promising areas include diagnostics and characterization of many neurological conditions (especially ischemic strokes, epilepsy and dementia) and psychiatric disorders.
