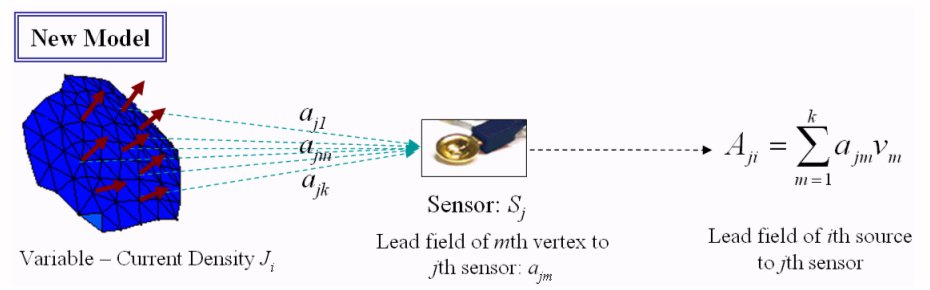

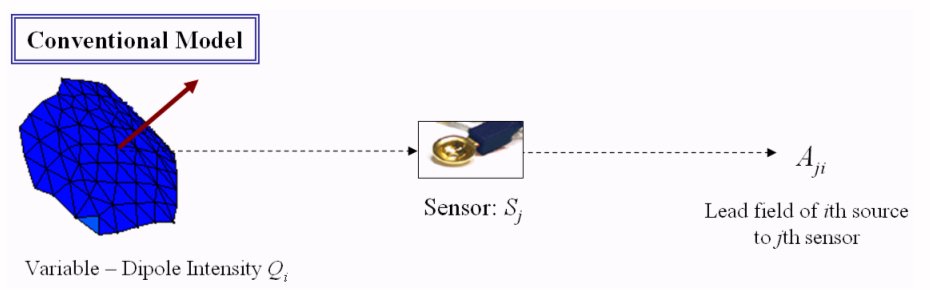

Figure 2. Conceptual comparison between conventional and new source models: (a) conventional model uses a single dipolar source in a cortical patch to evaluate lead field matrix; (b) proposed model uses all vertices inside the cortical patch to evaluate the lead field matrix. Each vertex in the patch has its own unit normal vector nm = (n1m, n2m, n3m) and virtual area vm, where m = 1,…,k.
