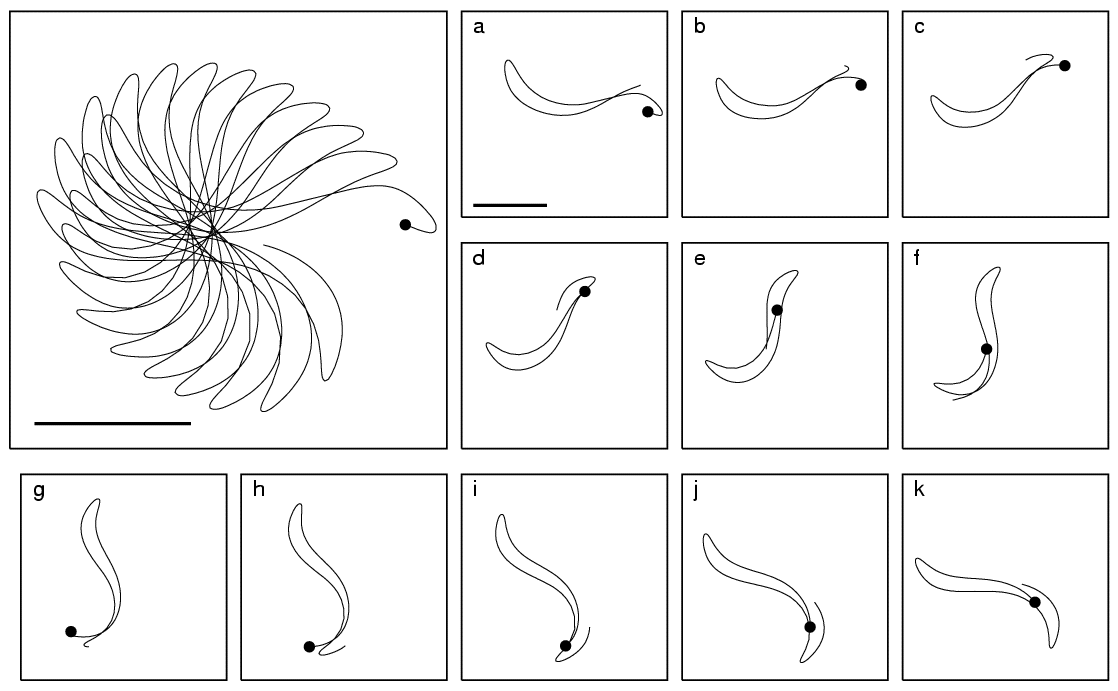

Figure 9:
Meandering pattern for PCa= 0.5 (standard value is
PCa= 0.25). Plots
a-k show
tip-trajectory evolution during successive 150 ms intervals while the enlarged plot shows the whole
evolution from a
tok. The starting tip-trajectory point in each plot is marked by a filled circle.
The horizontal bars correspond to 5 mm and the plot size is
14 mm×14 mm. The simulation consisted
of a counter-clockwise rotating spiral in a
30 mm×30 mm homogenous guinea-pig ventricular
medium.
